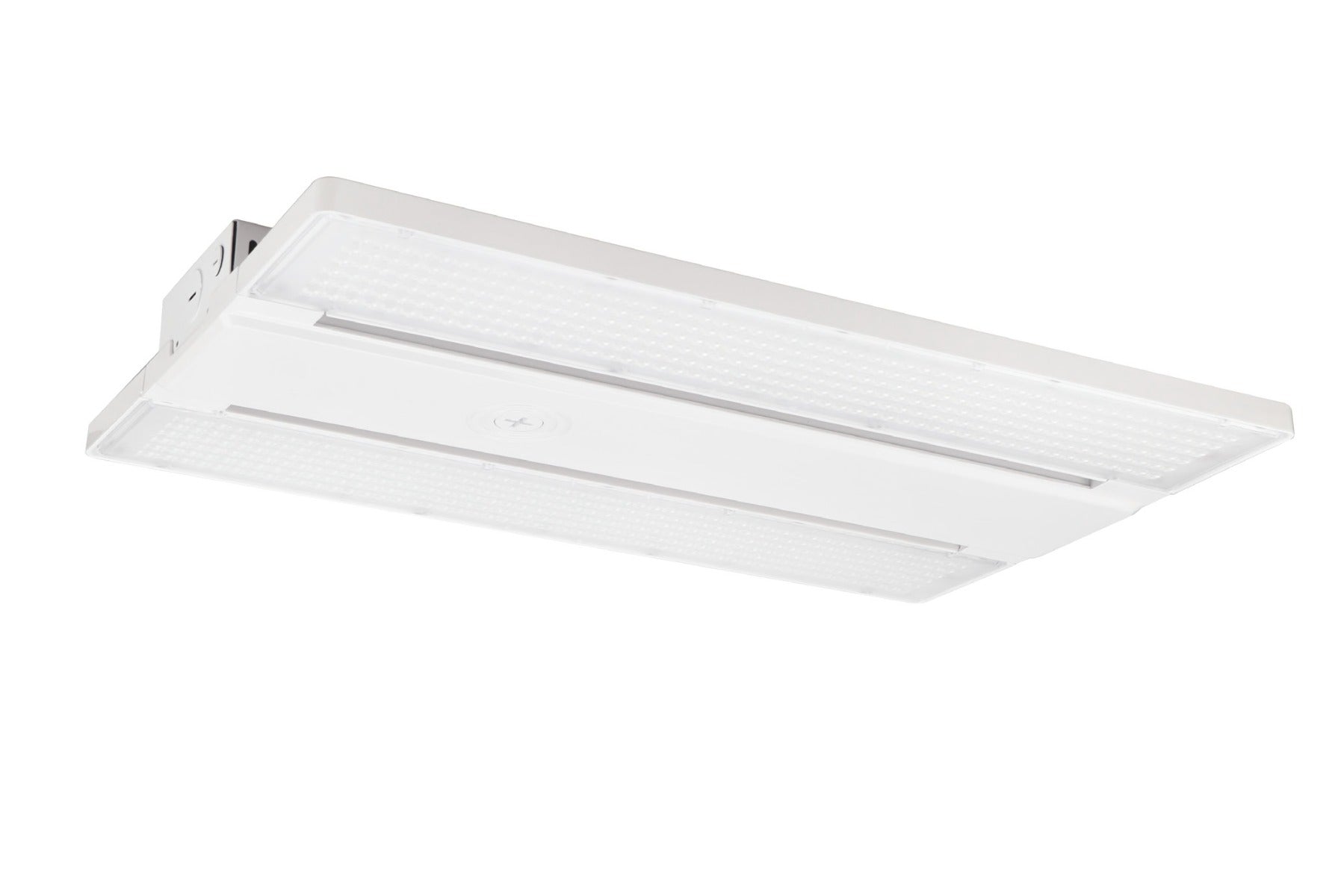

ATG Electronics HBST Stellar PRO Power Selectable LED Linear Highbay Fixture Dimmable
ATG Electronics HBST Stellar PRO Power Selectable LED Linear Highbay Fixture Dimmable
Specifications
Specifications
| Part Number# | HBST |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 17,803 - 49,905 |
| Wattage: | 320 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, UL Listed, Title 24 Compliant |
| CRI: | >80 |
| Width: | 11.01" - 11.08" |
| Length: | 14.3" - 23.1" |
| Height: | 1.8" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.28 - 7.92 lbs |
| Manufacturer: | ATG Electronics |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ATG's HBST Stellar PRO LED Linear Highbay combines cutting-edge features to provide a versatile and efficient lighting solution. With a clean, modern, and compact design, it features precision-designed optics for optimal illumination. The die-cast aluminum housing and heat sink ensure durability and effective thermal management. Achieving an efficacy of up to 158 lumens per watt, it delivers an impressive lumen output of up to 49,900 lumens, ensuring bright and efficient lighting. The Power Select Technology introduces 3-step wattage selectable options, allowing users to tailor the fixture's power consumption to specific needs.
Features:
• Clean, Modern, Compact Design, Precision-Designed Optics
• Die-cast Aluminum Housing and Heat Sink
• First-Class Thermal Management, -40°C~65°C(-40°F~149°F) Ambient Range Operation
• 120-277V Universal Input (347-480V Optional)
• Efficacy Up To 158 LM/W, Lumen Output Up To 49,900 LM
• 0-10V Dimming Comes Standard
• Power Select Technology: 3-Step Wattage Selectable
• 90°x90° Distribution Comes Standard (40°x90° Aisle Distribution Optional)
• Stand Alone PNP Sensor Available, Sensor Receptacle Pre-installed
• BLE Mesh Control (LLLC) and Circuit Level Control (LALC) Options Available
• Emergency Backup Options Available, Sold Separately
• Industry-leading 10 Years Warranty
