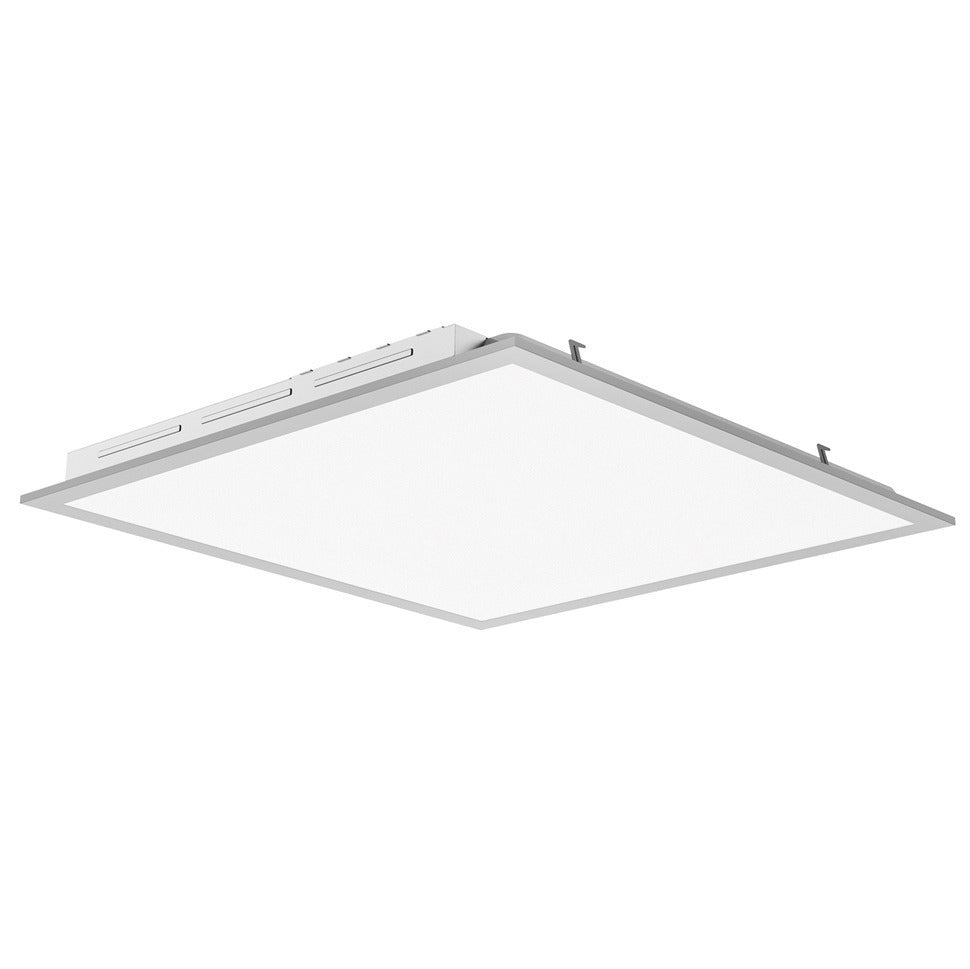

ATG Electronics FPBL22-16W-T1-RU-S 2x2 DUO Selectable LED Flat Panel Gen 2S Light Fixture Dimmable
ATG Electronics FPBL22-16W-T1-RU-S 2x2 DUO Selectable LED Flat Panel Gen 2S Light Fixture Dimmable
Specifications
Specifications
| Part Number# | FPBL22-16W-T1-RU-S |
|---|---|
| Type of Area: | Office & Small Retail, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 1,983 - 3,915 |
| Wattage: | 16 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, Title 24 Compliant |
| Dimensions: | 23.8" x 23.8" x 1.77" |
| Width: | 23.8" |
| Length: | 23.8" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 14 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ATG Electronics |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
ATG Electronics' FPBL-T 2x2 DUO Selectable LED Flat Panel is designed for ultimate versatility and efficiency. Featuring Color and Power Selectable Technology, it allows easy adjustment of CCT and wattage to suit various indoor commercial lighting applications such as offices, retail spaces, and showrooms. The low profile design ensures minimal glare and flicker, providing uniform ambient lighting. With a PMMA lens and PS diffuser, it guarantees high performance, supported by emergency backup and multiple control options. Simplifying installation and enhancing adaptability, the DUO Selectable Panel is a reliable solution for diverse lighting needs.
Features:
• Feature Color Selectable Technology: Adjust CCT between 3500K / 4000K / 5000K
• Feature Power Selectable Technology: Adjust wattage between 16W / 20W / 30W(2X2)
• Low profile, low glare, low flicker, classic design
• PMMA lens, PS diffuser
• THD<14%, Power Factor>0.97
• Emergency backup options available
• Stand Alone Fixture Control(SAFC) options available
• BLE Mesh Control (LLLC) and Circuit Level control (LALC) options available
• Surface mount kit and flange kit available
• Calculated L70>100,000 hours
