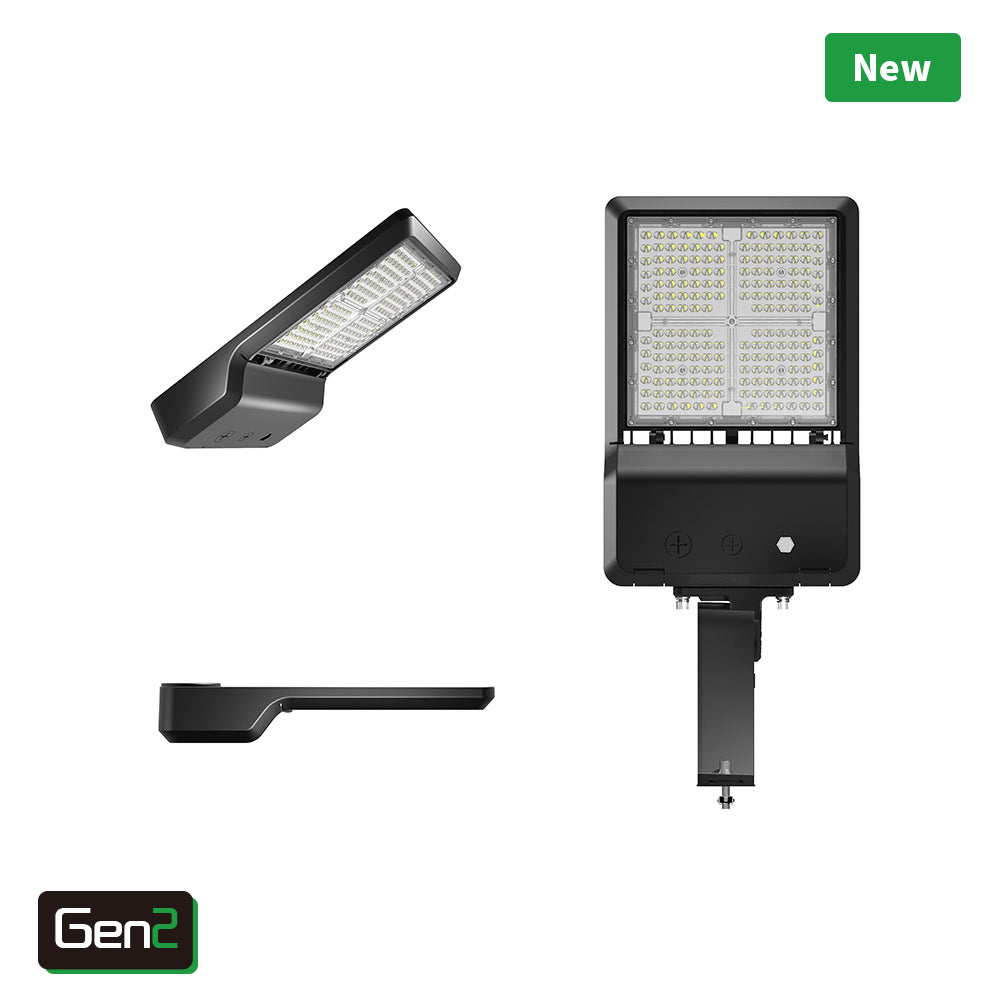

ATG Electronics AR2 LED ARCHER G2 Series Type 3 Area Light Fixture Dimmable
ATG Electronics AR2 LED ARCHER G2 Series Type 3 Area Light Fixture Dimmable
Specifications
Specifications
| Part Number# | AR2 |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot, Road & Street |
| Color Temp: | Selectable CCT |
| Lumen Output: | 9,728 - 49,088 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Approved, FCC Compliant, IP65 / IP66 / IP67, UL Listed, Title 24 Compliant |
| CRI: | >80 |
| Width: | 10.39" - 13.1" |
| Length: | 12" - 18.8" |
| Height: | 2.99" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.54 - 11 lbs |
| Manufacturer: | ATG Electronics |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ATG's ARCHER G2 Series LED Area Light offers customizable power settings and operates with a universal input range of 120-277VAC, with an optional 347-480V input available. It comes in a bronze housing, with the option for custom input, and offers various mounting, optics, and control choices. With four optics to choose from, this fixture is well-suited for illuminating walkways, roadways, parking lots, auto dealerships, recreational areas, and other outdoor lighting requirements. It includes adjustable arm mounting, slip fitter, and wall mount options to accommodate different installation needs.
Features:
• Heavy-duty die-cast aluminum housing with ample heat sinking.
• Compact, low-profile design delivers high performance.
• High-quality finishes prevent corrosion and protect against extreme environmental conditions.
• Custom paint is available with additional cost and lead time.
• Power selectable technology: 100W/80W/60W, 150W/120W/100W, and 300W/240W/200W
• Type III lens comes standard(pre-installed). Type II, Type IV, and Type V lenses are sold separately.
• Four contractor-friendly mounting options available (sold separately).
• 0-10V dimmable (0-100%) 12V AUX power tap, 6KV surge protection.
• 347-480V are available with additional cost and lead time.
• Sensor receptacle pre-installed, plug-and-play occupancy sensor sold separately.
• Bluetooth mesh smart sensor optional.
• Integrated NEMA/ANSI C136.10 3-pin and 7-pin photocell optional.
• UL Certified; IP 65 rated; DLC Premium V5.1 listed.
