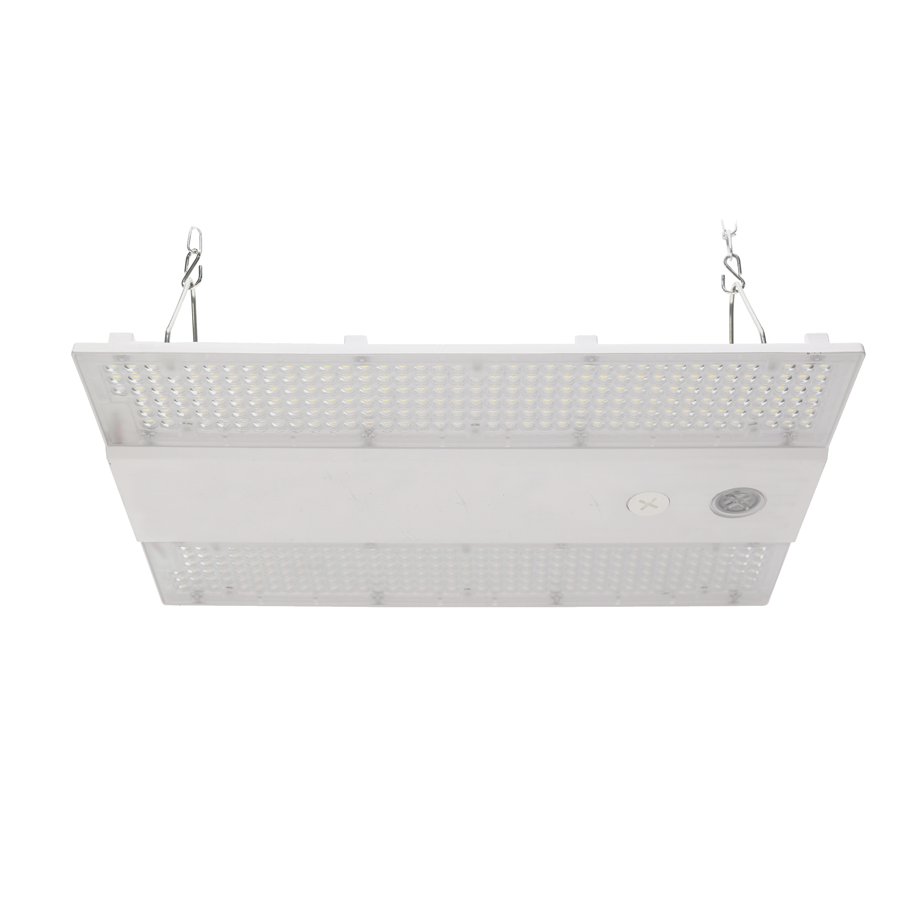

ASD Lighting ASD-WHB5B-ST-160 Power and Color Selectable LED Linear High Bay Light Fixture with Q-Base
ASD Lighting ASD-WHB5B-ST-160 Power and Color Selectable LED Linear High Bay Light Fixture with Q-Base
Specifications
Specifications
| Part Number# | ASD-WHB5B-ST-160 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 25,522 |
| Wattage: | 100W/130W/160W |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | > 70 |
| Dimensions: | 14.94" x 9.81" x 2.94" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.5 - 13 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The ASD Lighting LED Linear High Bay with Q-Base Standard Series delivers high-efficiency illumination with a 170 lm/W output. Constructed with a die-cast aluminum housing for heat dissipation and an anti-glare PC lens, this fixture is built for long-term durability. It features adjustable power settings and three selectable color temperatures: 3500K, 4000K, and 5000K. The integrated Q-base supports easy installation of microwave motion or PIR sensors. Designed for 120-277V circuits, it includes 6kV surge protection and supports suspended, surface, or pendant mounting.
Features:
• DESIGN: LED LINEAR HIGH BAY WITH Q-BASE STANDARD SERIES is a standard efficiency 170lm/W output. It has a built-in Q-base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. Surge protection 6kV protects the fixture from voltage spikes and current surges.
• VARIETY: Fixture is designed to operate on a 120-277V circuit. COLOR AND POWER SELECTABLE: You can choose either a 3500K neutral white, 4000K cool white or 5000K daylight color temperature, and change the power with a simple switch.
• INSTALLATION: This fixture supports three different mounting styles: a suspended setup for a floating appearance, a surface-mounted option for a flush fit, and a pendant-style installation for a stylish, hanging effect.
• ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
