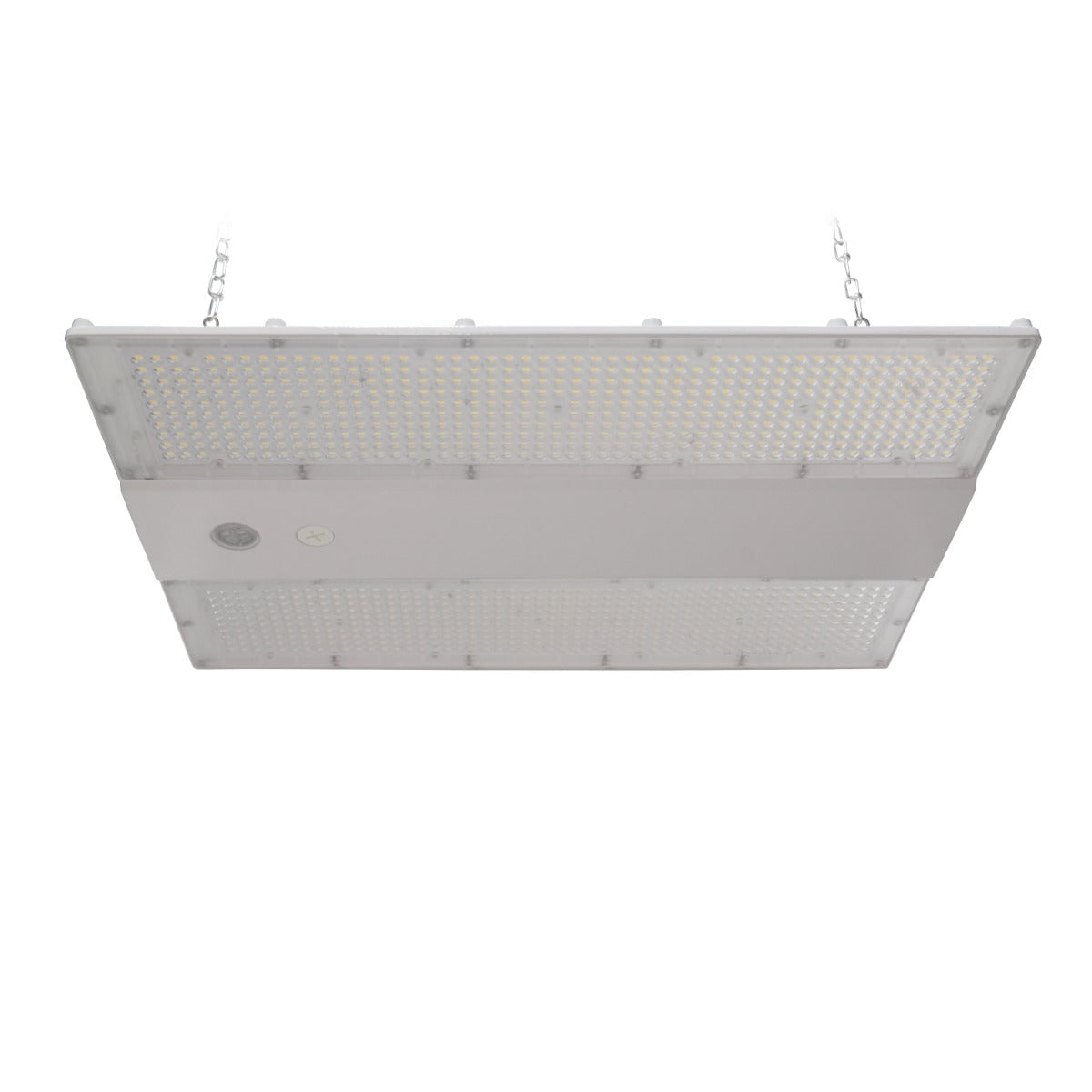

ASD Lighting ASD-WHB5B-PRO-160 DLC Premium Color Selectable LED Linear High Bay with 3-Pin Q-Base Light Fixture Dimmable
ASD Lighting ASD-WHB5B-PRO-160 DLC Premium Color Selectable LED Linear High Bay with 3-Pin Q-Base Light Fixture Dimmable
Specifications
Specifications
| Part Number# | ASD-WHB5B-PRO-160 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 18,099 - 25,522 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | >80 |
| Width: | 9.81" |
| Length: | 14.94" |
| Height: | 2.94" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.9 - 9.9 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's LED Linear High Bay with Q-Base offers exceptional efficiency with up to 170lm/W output, making it ideal for commercial and industrial settings. It features a built-in motion sensor base, allowing the installation of either a microwave motion or PIR sensor, and is housed in die-cast aluminum for superior heat dissipation. Designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver, it offers adjustable color temperatures of 3500K, 4000K, or 5000K, and includes surge protection for added reliability. With three mounting options, a built-in battery backup for 90 minutes of emergency power, and a lifespan of up to 167,000 hours, this fixture is a durable and efficient solution for warehouses, retail stores, and more.
Features:
• DESIGN - LED LINEAR HIGH BAY WITH Q-BASE is extremely efficient with up to 170lm/W output. It has a built-in motion sensor base, allowing you to install the microwave motion or PIR sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver.
• SURGE PROTECTION - 6kV protects the fixture from voltage spikes and current surges.
• COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.
• BATTERY BACK-UP - The built-in battery back-up provides 90 minutes of power in case of emergency.
• INSTALLATION - This fixture has three different mounting options: suspended, surface, and pendant.
• ADVANTAGES - With calculated lifespan up to 167,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety
