ASD Lighting ASD-WHB5B-160A50 Power Selectable LED Linear High Bay with Q-Base 5000K Dimmable - While Supplies Last
ASD Lighting ASD-WHB5B-160A50 Power Selectable LED Linear High Bay with Q-Base 5000K Dimmable - While Supplies Last
Specifications
Specifications
| Part Number# | ASD-WHB5B-160A50 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Retail |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 16,882 - 24,842 |
| Wattage: | 160 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | >80 |
| Dimensions: | 14.94" x 9.81" x 2.94" |
| Width: | 9.81" |
| Length: | 14.94" |
| Height: | 2.94" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's LED linear high bay fixture is designed for commercial and industrial environments. Featuring a built-in motion sensor base, durable die-cast aluminum housing with excellent heat dissipation, and an anti-glare PC lens, it ensures long-lasting reliability. With a simple switch, users can adjust power levels as needed, while the 0-10V dimmable driver and 6kV surge protection enhance functionality and safety. Offering three mounting options and rated for damp locations with IK10 impact protection, this fixture is built to withstand demanding conditions and comes with a 5-year limited warranty.
Features:

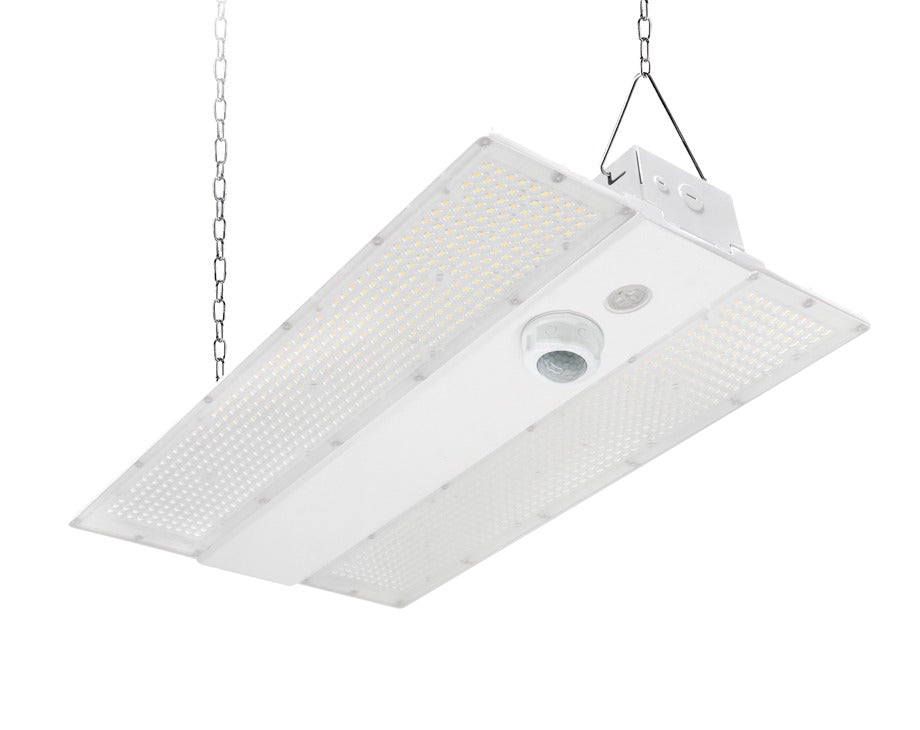

• DESIGN. LED LINEAR HIGH BAY WITH Q-BASE has a built-in motion sensor base, allowing you to install the microwave or PIR motion sensor. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver. Surge protection 6kV protects the fixture from voltage spikes and current surges.
• POWER ADJUSTABLE: You can easily change the power with a simple switch according to your needs.
• INSTALLATION. This fixture has three different mounting options: suspended, surface, and pendant.

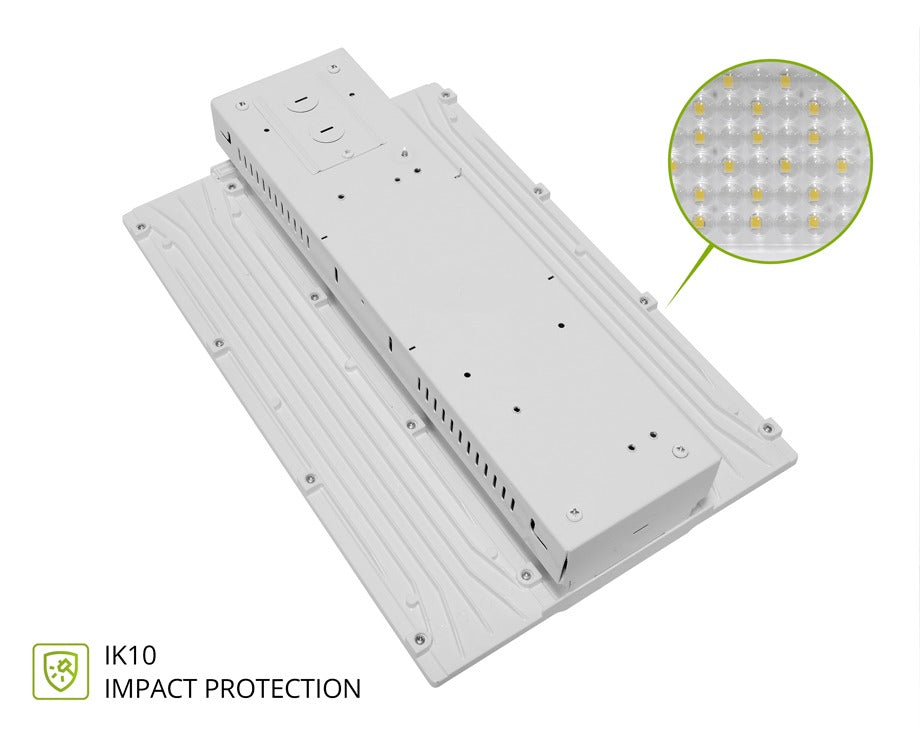

• APPLICATION. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture has IK10 level impact protection and is also Damp Locations rated.
• ADVANTAGES: With calculated lifespan up to 167 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
