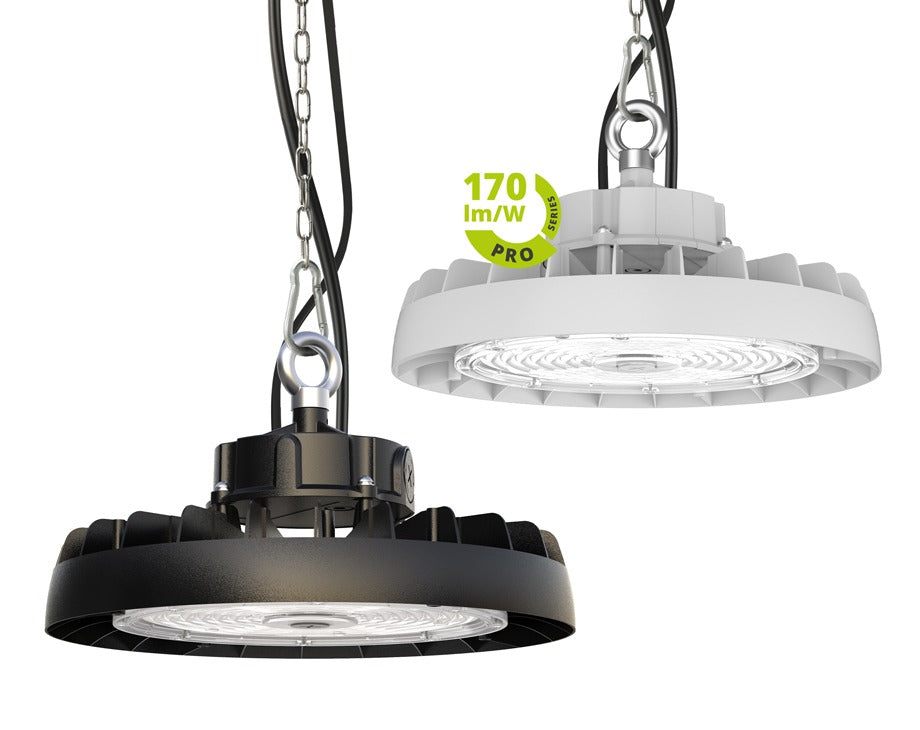

ASD Lighting ASD-UHB2A-ST Series Power and Color Selectable LED UFO Round Highbay with Q-Base Dimmable
ASD Lighting ASD-UHB2A-ST Series Power and Color Selectable LED UFO Round Highbay with Q-Base Dimmable
Specifications
Specifications
| Part Number# | ASD-UHB2A-ST |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 26,571 - 82,998 |
| Wattage: | 500 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | > 70 |
| Width: | 10.25" - 14.44" |
| Length: | 10.25" - 14.44" |
| Height: | 4.69" - 7.13" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.5 - 13 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's ASD-UHB2A-ST LED UFO High Bay is designed for maximum efficiency at 170 lm/W. Its die-cast aluminum housing, anti-glare PC lens, and IP69K/IK08 ratings ensure durability, heat dissipation, and resistance to pressure washing and impacts. With selectable 3000K, 4000K, or 5000K color temperatures and multiple wattage options, it offers flexibility for warehouses, gyms, supermarkets, and industrial applications. Featuring 0-10V dimming, surge protection, and three mounting styles, this DLC Premium and UL-listed fixture delivers up to 143,000 hours of reliable performance with a 5-year warranty.
Features:
• Extreme efficiency 170lm/W
• IP69K rated, allows high-pressure washing
• IK08 protection against impacts
• Color and Power selectable
DESIGN:
LED UFO HIGH BAY with Q-base Standard Series is extremely efficient with a 170lm/W output. Die-cast aluminum housing with excellent heat dissipation along with an anti-glare PC lens provide many years of use. It can operate in temperatures ranging from -40 to 131°F. The device is equipped with a 0-10V dimmable driver, which allows you to adjust the brightness to suit your needs. Surge protection 6kV protects the fixture from voltage spikes and current surges.
VARIETY:
Fixture is designed to operate on 120-277V or 200-480V circuits (depending on model) and comes in black and white finish.
COLOR AND POWER SELECTABLE:
You can choose either a 3000K neutral white, 4000K cool white, or 5000K daylight color temperature, and change the power with a simple switch.
INSTALLATION:
This fixture supports three different mounting styles: a suspended setup for a floating appearance, a surface-mounted option for a flush fit, and a pendant-style installation for a stylish, hanging effect. Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications.
ADVANTAGES:
With a calculated lifespan up to 143,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top-quality products and safety!
