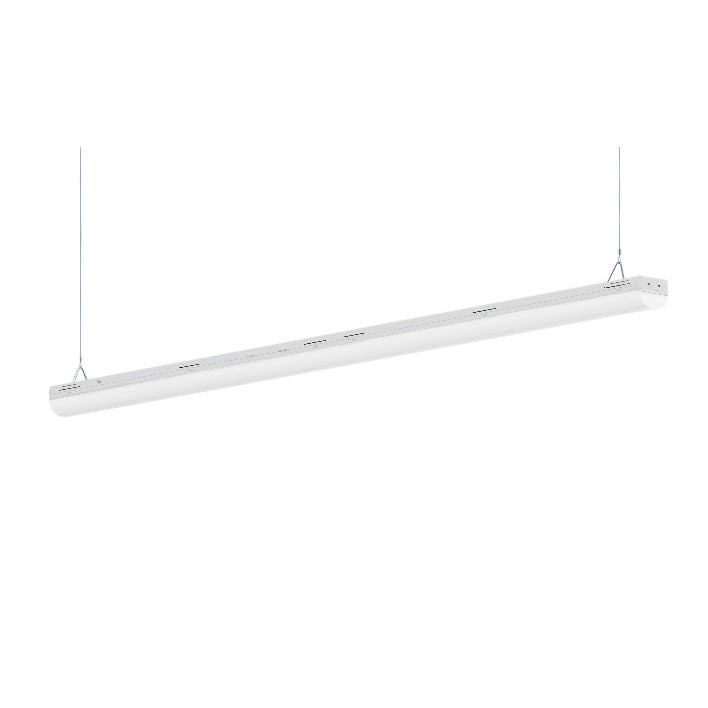

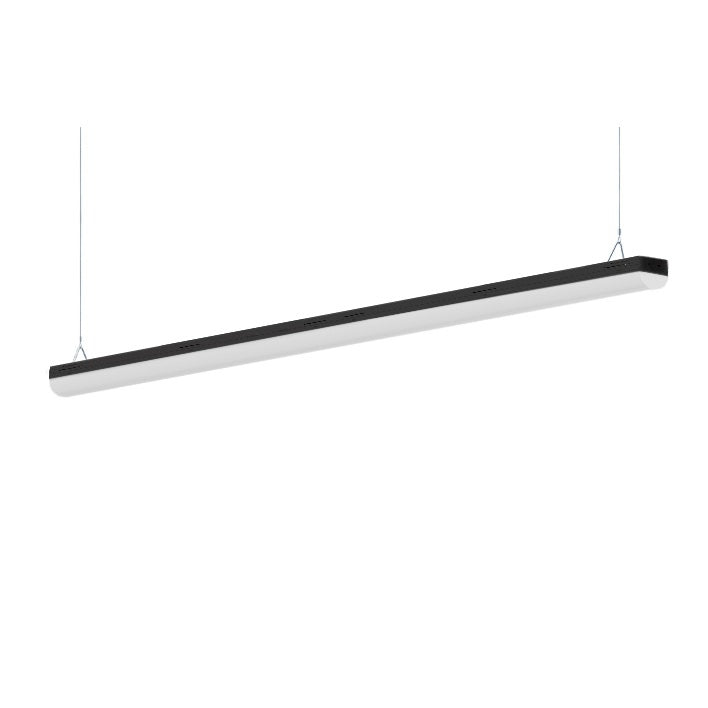

ASD Lighting ASD-LSF7A-8A90 Series Color Selectable 90-Watt LED 8FT Striplight Fixture Dimmable with Q-Base
ASD Lighting ASD-LSF7A-8A90 Series Color Selectable 90-Watt LED 8FT Striplight Fixture Dimmable with Q-Base
Specifications
Specifications
| Part Number# | ASD-LSF7A-8A90-EM-BK |
|---|---|
| Type of Area: | Industrial & Warehouse, Schools, Stairwell, Hospitals, Commercial Offices, Education, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 9,048 - 12,394 |
| Wattage: | 90 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | >80 |
| Width: | 13.4" - 15.5" |
| Length: | 95.8" |
| Height: | 3.6" - 4.1" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.6 - 10.8 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
ASD Lighting's LED Striplight combines a sleek, low-profile design with durable, commercial-grade housing that is resistant to rust and impact. It features an anti-glare PMMA lens for long-term reliability and operates on 120-277V circuits with a 0-10V dimmable driver. The built-in motion sensor enables automatic shut-off when no motion is detected, and users can select from 3500K, 4000K, or 5000K color temperatures, easily adjusting the power with a switch. Perfect for commercial and industrial spaces such as office buildings, hospitals, and workshops, this fixture is damp location rated and boasts a lifespan of up to 174,000 hours, supported by a 5-year warranty and UL/DLC certifications for quality and safety
Features:
• DESIGN - LED STRIPLIGHT FIXTURE WITH Q-BASE has a narrow, low-profile design. Durable commercial grade housing resistant to rust and impact along with an anti-glare PMMA lens provide many years of use. It is designed to operate on 120-277V or 277-480V circuits with a 0-10V dimmable driver.
• SENSOR BASE - The fixture has a built-in motion sensor base, allowing you to install the microwave motion sensor, which will turn off the fixture automatically when no motion is detected.
• BATTERY BACK-UP - The built-in battery back-up provide 90 minutes of power in case of emergency.
• COLOR AND POWER SELECTABLE - You can choose either a 3,500K neutral white, 4,000K cool white or 5,000K daylight color temperature, and change the power with a simple switch.
• APPLICATION - Perfect commercial or industrial solution for office buildings, schools, hospitals, hallways, stairwells, workshops, and many other applications. It is also Damp Locations rated.
• ADVANTAGES - With calculated lifespan up to 156,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Standard certifications to guarantee top quality products and safety.
