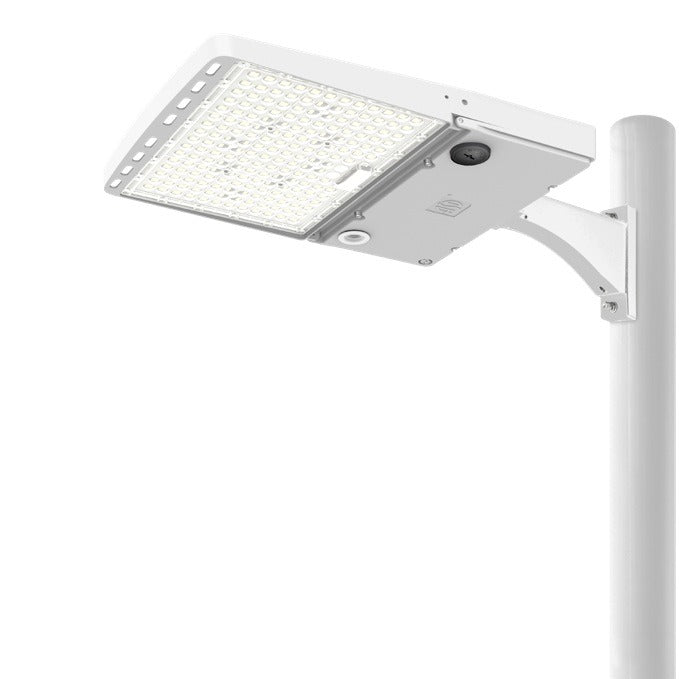

ASD Lighting ASD-LSB5B-PRO-300 Power and Color Selectable LED Area Light Fixture with Q-base and Photocell
ASD Lighting ASD-LSB5B-PRO-300 Power and Color Selectable LED Area Light Fixture with Q-base and Photocell
Specifications
Specifications
| Part Number# | ASD-LSB5B-PRO-300 |
|---|---|
| Type of Area: | Industrial & Warehouse, Pole / Street / Parking Lot, Wall Mount & Building Exteriors, Hotels, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 35,785 - 51,005 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, IP66, UL Listed |
| CRI: | 70 |
| Dimensions: | 16.56" x 12.18" x 2.50" |
| Width: | 12.18" |
| Length: | 16.56" |
| Height: | 2.50" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.1 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's LED Area Light fixture is designed for commercial and industrial applications. Offering an impressive 170lm/W output, it features a built-in photocell for automatic dusk-to-dawn operation, which can be disabled if needed, and a motion sensor base for added security. With selectable power settings and three color temperature options—3000K warm white, 4000K cool white, and 5000K daylight—this fixture provides customizable illumination. Built for durability, it boasts a lifespan of up to 145,000 hours, is rated for wet locations, and comes with a 5-year limited warranty, ensuring long-lasting reliability.
Features:
• DESIGN - LED AREA LIGHT WITH Q-BASE AND PHOTOCELL is extremely efficient with a 170lm/W output. With 10kV surge protection and a 0-10V dimmable driver. The built-in motion sensor base allows you to install the microwave or PIR motion sensor. Integrated photocell switches the fixture on at night time. The photocell can be disabled with built-in switch. The fixture is designed to operate on 120-277V or 200-480V with a power adjustable option.

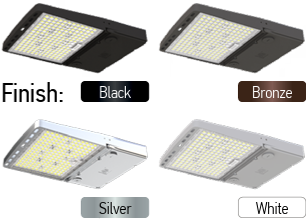

• VARIETY - The fixture comes in rectangular or round shape and is available in White, Black, Silver or Bronze finishes.
• PHOTOCELL - The built-in Dusk to Dawn Photocell will automatically activate/deactivate the fixture depending on the time of day. The photocell can be disabled with on-off switch.
• COLOR AND POWER SELECTABLE - You can choose between 3000K warm white, 4000K cool white, and 5000K daylight white color
temperatures.
• INSTALLATION - The fixture can be mounted to a junction box or directly to a wall. Perfect commercial or industrial solution for outdoor security lighting, wall perimeter lighting, garages, large backyards, warehouses, hotels, and many other applications. It is also Wet Locations rated.
• ADVANTAGES - With calculated lifespan up to 145 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and DLC Premium certifications to guarantee top quality products and safety!
