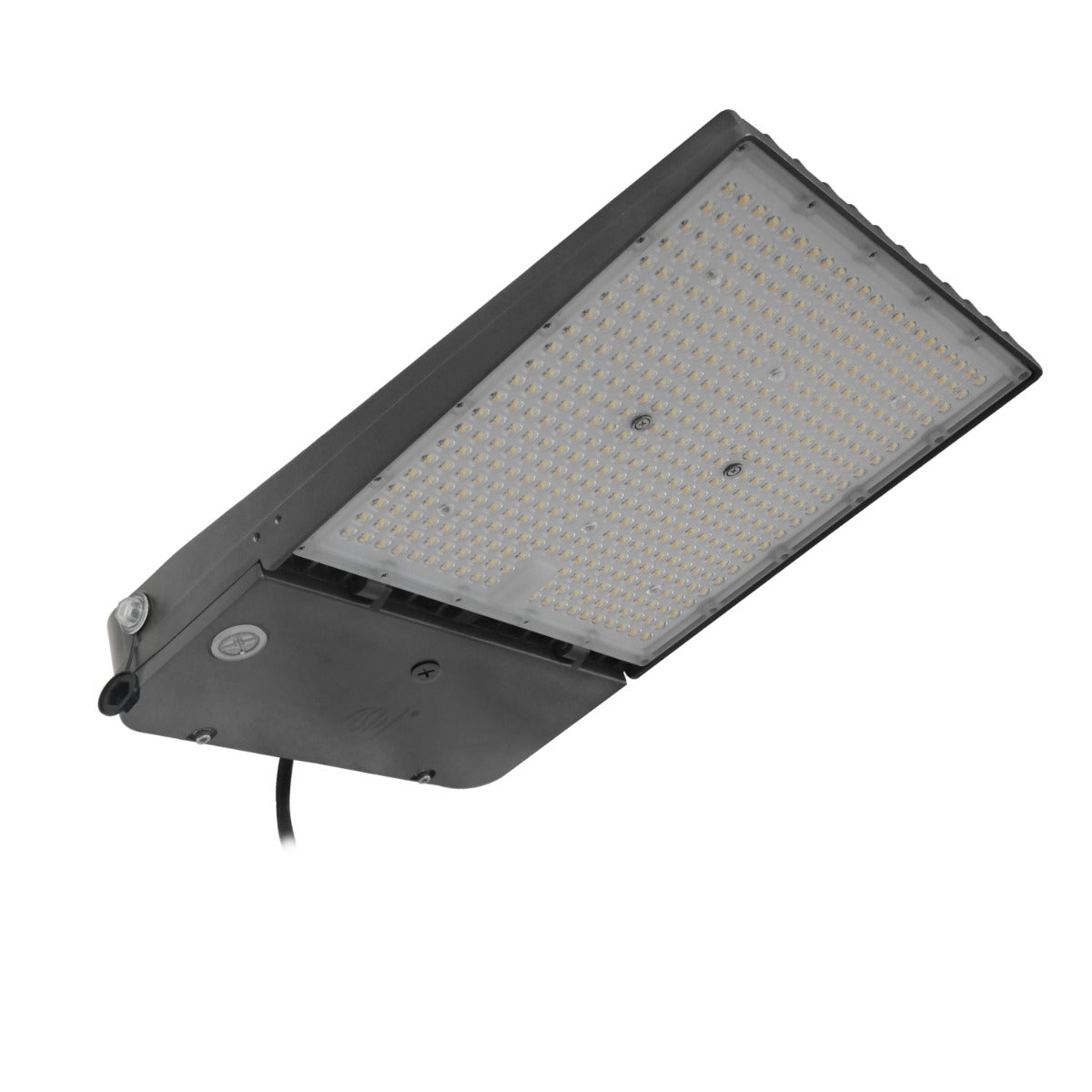

ASD Lighting ASD-LSB5-300D50BR 300-Watt LED Area Light Fixture Dimmable with Photocell
ASD Lighting ASD-LSB5-300D50BR 300-Watt LED Area Light Fixture Dimmable with Photocell
-
Specsheet:
Specifications
Specifications
| Part Number# | ASD-LSB5-300D50BR |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Pole / Street / Parking Lot, Factory / Industrial, Road & Street |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 44,069 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | 70+ |
| Dimensions: | 12.56" x 18.5" x 2.81" |
| Width: | 12.56" |
| Length: | 18.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.3 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's ASD-LSB5 300W LED area light fixture combines durability and advanced features, including dimmable functionality and an integrated photocell. Its die-cast aluminum housing provides superior heat dissipation, while the anti-glare PC type III-M lens ensures even and efficient light distribution. Engineered to handle voltage spikes and current surges, the fixture is equipped with 10kV surge protection and operates on 120-277V circuits. It is 3G vibration-rated and compatible with multiple mounting options, making it an excellent choice for commercial and industrial applications such as roadway and parking lot lighting.
Features:
• Die-cast aluminum housing with excellent heat dissipation
• 10kV surge protection against voltage and current surges
• Shoebox, wallpack, floodlight, or streetlight brackets
• 3G vibration rating that conforms to standards for roadway
