ASD Lighting ASD-JFRB-MV Fire Rated Color Selectable LED Round Recessed Mini Panel Light Fixture Dimmable
ASD Lighting ASD-JFRB-MV Fire Rated Color Selectable LED Round Recessed Mini Panel Light Fixture Dimmable
Specifications
Specifications
| Part Number# | ASD-JFRB-MV |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Hotels, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 835 - 1,197 |
| Wattage: | 15 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, ETL Listed, UL Listed |
| CRI: | >90 |
| Length: | 5" - 6.88" |
| Height: | 2.19" - 2.25" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1-1.5 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

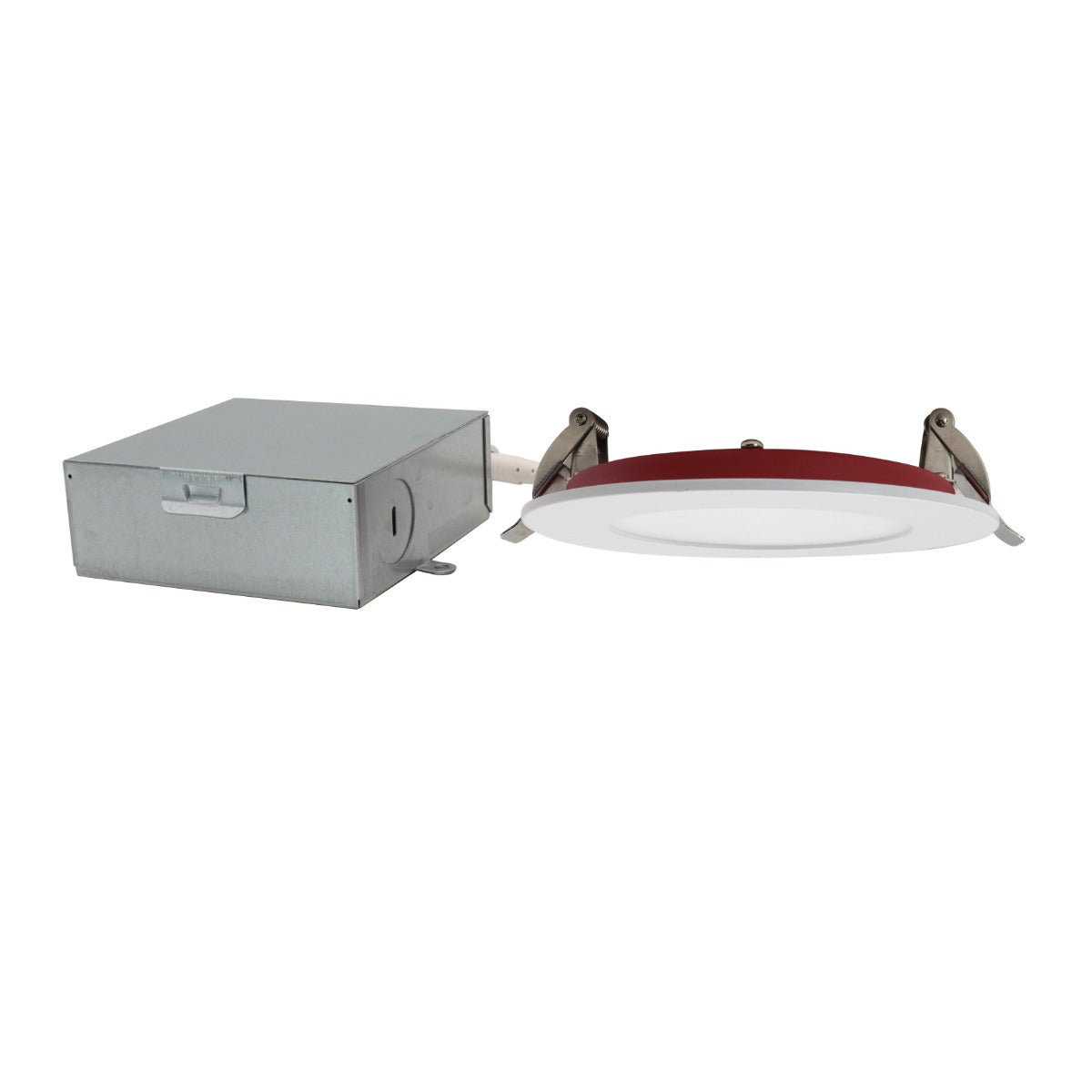

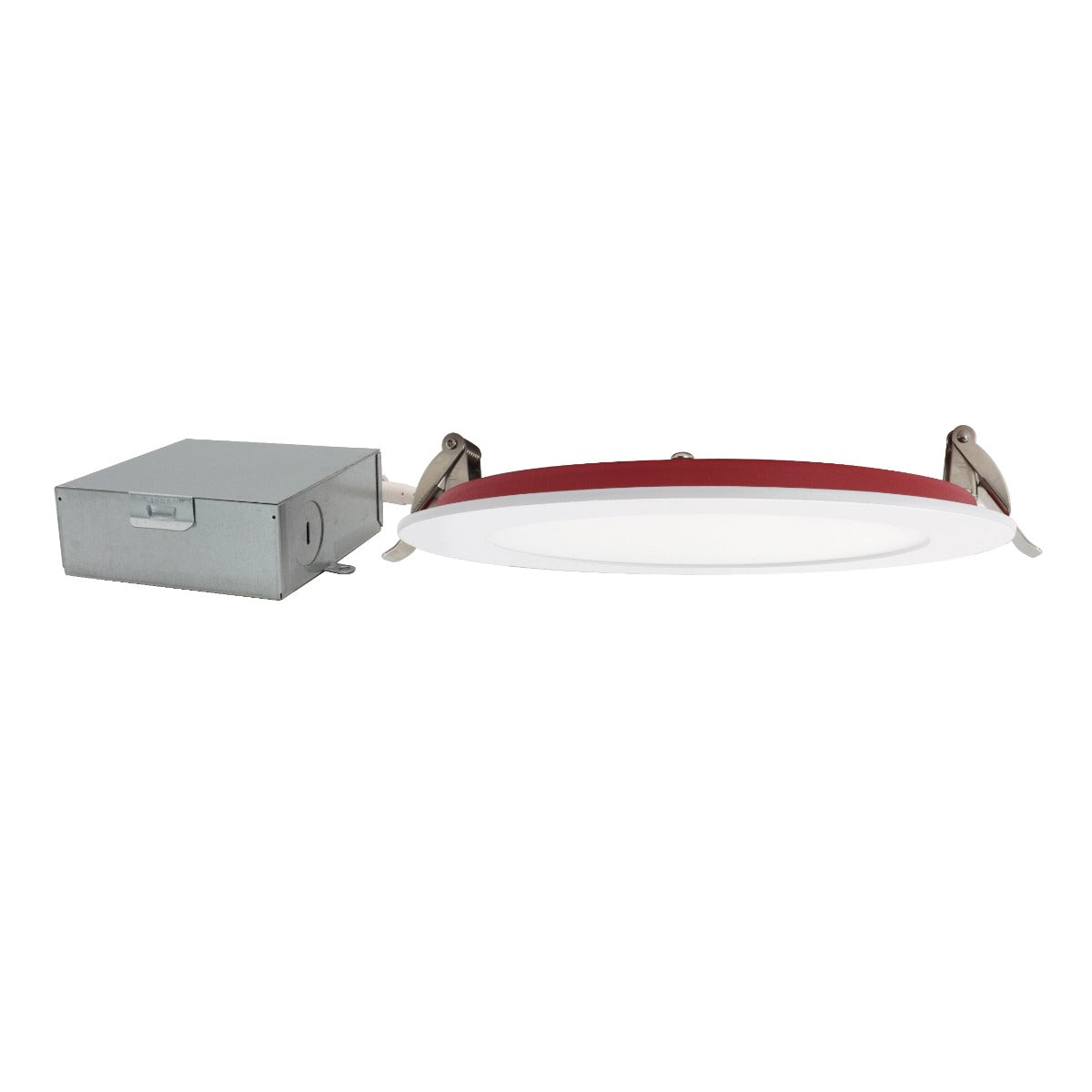

ASD Lighting's LED Round Recessed Mini Panel features a reinforced, heat-resistant steel body with a 2-hour fire resistance rating. Its J-box, plug & twist connector, and spring-loaded clips ensure a quick and easy installation. Designed for 120V or 120-277V circuits with a 0-10V dimmable driver, it offers even light through an acrylic lens with a 110° beam angle and CRI90+. Available in various color temperatures from 2700K soft white to 5000K daylight, the fixture is Air Tight, IC rated, and suitable for wet locations, with a 50,000-hour lifespan and a 5-year limited warranty, ensuring top quality and safety.
Features:
• DESIGN - FIRE RATED LED ROUND RECESSED MINI PANEL has a reinforced, heat resistant steel body, and a 2-hour fire resistance rating. This fixture has a J-box, plug & twist connector, and spring-loaded clips, making the installation process quick and easy. The acrylic lens with a 110° beam angle and CRI90+ grants you even light. It is designed to operate on 120V or 120-277V circuits.
• HEAVY DUTY COMMERCIAL GRADE SPRING CLIPS - with increased height allow the fixture to be installed in ceilings up to 1-3/4" thick.
• COLOR SELECTABLE - You can choose either a 2,700K soft white, 3,000K warm white, 3,500K neutral white, 4,000K cool white, or 5,000K daylight color temperature.
• INSTALLATION - This fixture is Air Tight and IC rated so there is no can or any other housing required. When installed in ceilings complying to a fire rated building code (example: type-X gypsum), no additional accessories are needed. It is also Wet Locations rated.
• ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL certification to guarantee top quality products and safety! Additionally, our fire rated fixtures are tested to comply with UL 263, ASTM E119, and CAN ULC S101.
