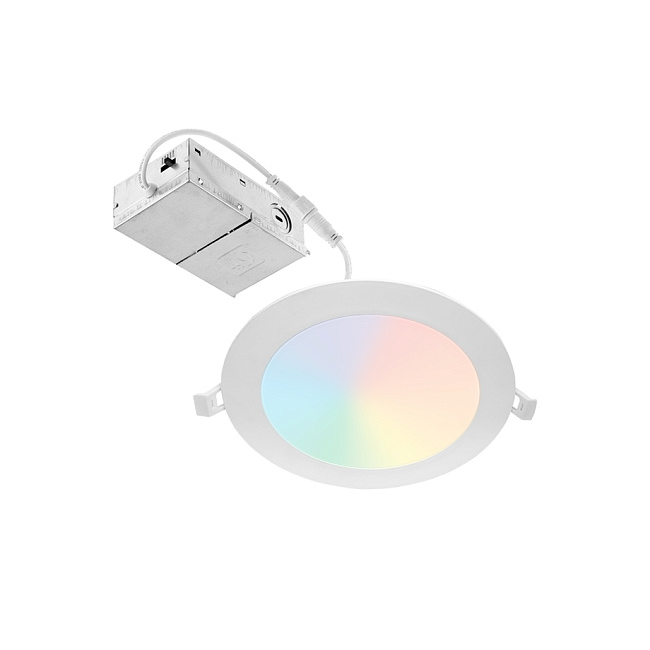

ASD Lighting ASD-JBR-6D15SM-RGBW-WH 6-Inch LED Round Wafer Downlight Fixture
ASD Lighting ASD-JBR-6D15SM-RGBW-WH 6-Inch LED Round Wafer Downlight Fixture
Specifications
Specifications
| Part Number# | ASD-JBR-6D15SM-RGBW-WH |
|---|---|
| Type of Area: | Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,135 |
| Wattage: | 15 Watt |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed, Title 24 Compliant |
| CRI: | >90 |
| Dimensions: | 7.69" x 6.75" x 1.25" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | 120V |
| Manufacturer: | ASD Lighting |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
The ASD-JBR-6D15SM-RGBW-WH is a 6-inch LED wafer downlight with RGBW color control and a low-profile design. It installs with a J-box, plug and twist connector, and spring-loaded clips, requiring only 2 inches of ceiling space. The acrylic lens provides a 110° beam angle. Controlled via the ASD Smart App, it supports RGBW colors from 2700K to 6500K and is compatible with Alexa and Google Assistant. Designed for 120V circuits with 10–100% dimming.
Features:
• DESIGN - LED WAFER ROUND WITH RGBW and classic, low-profile design is an ideal solution for low ceilings. This
fixture has a J-box, plug & twist connector, spring-loaded clips, and requires only 2" of ceiling space, making the installation process quick and easy. The acrylic lens with a 110° beam angle grants you even light. It is designed to operate on 120V circuits and provides smooth dimming capabilities ranging from 10% to 100%.
• RGBW - The fixture has RGBW design with ASD SMART APP control. You can easily select Red, Green, Blue, White (2700K-6500K) colors or its’ combinations, having 16.7 million colors in total. You can also choose lighting patterns and set up a schedule, having a great variety of good looking effects. All of it is easily controlled by ASD SMART APP on your Smartphone. The fixture is also compatible with Alexa and Google Assistant.
• INSTALLATION - Quick and easy installation. This fixture is IC rated so there is no can or any other housing required.
• APPLICATION - The fixture is rated for Wet location, making it perfect for kitchen, corridors, bathroom or any other common areas.
• ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with ETL and T24 certification to guarantee top quality products and safety!
