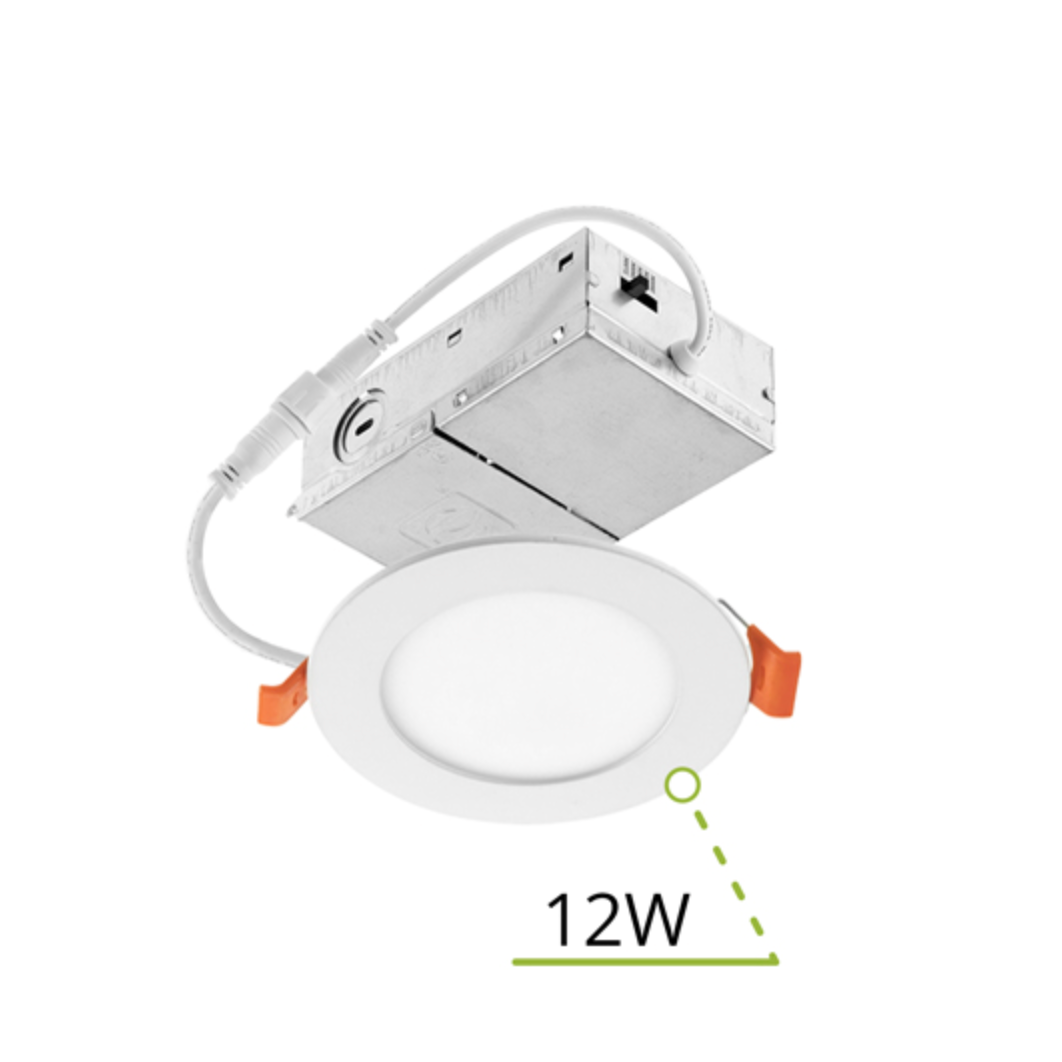

ASD Lighting ASD-JBR-4D12WH 12-Watt LED 4-Inch Round Wafer Recessed Mini Panel Triac Dimming
ASD Lighting ASD-JBR-4D12WH 12-Watt LED 4-Inch Round Wafer Recessed Mini Panel Triac Dimming
Specifications
Specifications
| Part Number# | ASD-JBR-4D12WH |
|---|---|
| Type of Area: | Home & Architectural, Hotels, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,011 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, Energy Star, ETL Listed, Title 24 Compliant |
| CRI: | 90+ |
| Dimensions: | 4.94" x 4.94" x 0.88" |
| Width: | 4.94" |
| Length: | 4.94" |
| Height: | 0.88" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | 120V |
| Weight Each: | 0.7 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The ASD-JBR-4D12WH is a 12-watt 4-inch round LED wafer recessed mini panel with a low-profile design. It includes a J-box, plug and twist connector, and spring-loaded clips for installation requiring only 2 inches of ceiling space. The acrylic lens provides a 110° beam angle with CRI 90+. Designed for 120V circuits with Triac dimming from 10% to 100%. IC rated and wet location rated.
Features:
• 12W 4-inch round LED wafer recessed panel
• 5CCT selectable: 2700K/3000K/3500K/4000K/5000K
• 110° beam angle with CRI 90+ acrylic lens
• 120V input with 10–100% Triac dimming
• Includes J-box, plug and twist connector, spring clips
• IC rated, wet location rated, 54,000-hour lifespan
