ASD Lighting ASD-CDL7-6DA22-8EM 6-Inch Power and Color Selectable LED Commercial Downlight with Battery Backup
ASD Lighting ASD-CDL7-6DA22-8EM 6-Inch Power and Color Selectable LED Commercial Downlight with Battery Backup
-
Specsheet:
Specifications
Specifications
| Part Number# | ASD-CDL7-6DA22-8EM |
|---|---|
| Type of Area: | Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 957 - 1,788 |
| Wattage: | 22 Watts |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed |
| CRI: | >90 |
| Dimensions: | 8.25" x 8.25" x 3.44" |
| Width: | 8.25" |
| Length: | 8.25" |
| Height: | 3.44" |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ASD Lighting |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
The ASD-CDL7-6DA22-8EM is a 6-inch LED commercial downlight with selectable color temperature and power. It features a durable aluminum housing, anti-glare PC lens, spring-loaded clips, and a 1.6 ft cord in a metal hose. Designed for 120–277V circuits with 0-10V dimming, it is IC rated and wet location rated. Includes an 8W battery backup providing 90 minutes of emergency power.
Features:
• DESIGN - LED COMMERCIAL DOWNLIGHT comes with a durable aluminum housing resistant to rust and impact, anti-glare PC lens, springloaded clips and 1.6 ft cord in metal hose. It is designed to operate on 120-277V circuits with a 0-10V dimmable driver.
• COLOR AND POWER SELECTABLE - You can choose either a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool
white, or 5000K daylight color temperature, and change the power with a simple switch.
• CRI90+ - Rating provides rich and natural colors and keeps your space looking and feeling vibrant. True bright colors also improve your mood and general health.
• INSTALLATION - This fixture is IC rated so there is no can or any other housing required. It is also Wet location rated, making it perfect for any spaces with humidity requirements. Perfect for retail, hospitality, or any other commercial space with a high ceiling.
• ADVANTAGES - With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL and Energy Star certifications to guarantee top quality products and safety!
• OPTIONS:

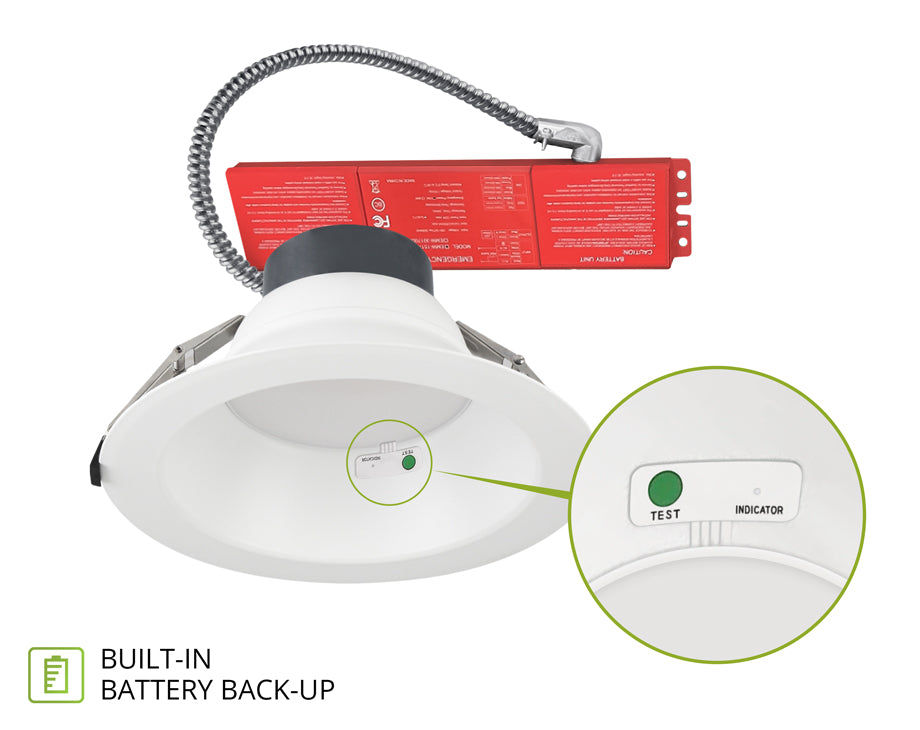

• MODELS WITH BATTERY BACK-UP - The built-in 8W battery back-up provides 90 minutes of power in case of emergency.
