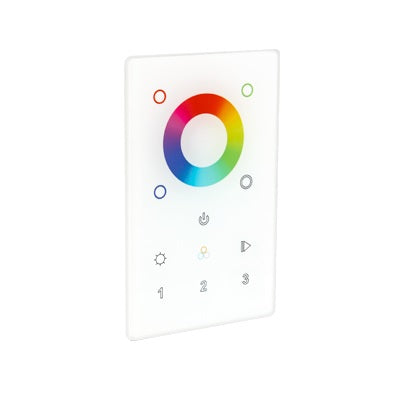

American Lighting RF-RGBW-3Z Trulux RF RGBW Touch Wall Control 12-24V DC
American Lighting RF-RGBW-3Z Trulux RF RGBW Touch Wall Control 12-24V DC
Specifications
Specifications
| Part Number# | RF-RGBW-3Z |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, FCC Compliant, ROHS |
| Dimensions: | 5.63" x 3.50" x 2.00" |
| Width: | 3.50" |
| Length: | 5.63" |
| Height: | 2.00" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Minimum Start Temperature: | 32 Deg F |
| Weight Each: | 0.3 lbs |
| Manufacturer: | American Lighting |
Details
Details
American Lighting RF-RGBW-3Z Trulux RF RGBW Touch Wall Control 12-24V DC
ShineRetrofits Input:
This Wireless RF Wall Controller is used for dimming, CCT, scene control, and zone control for RGB/RGB+WW. Features 1-3 zone operation, 4 preset levels, and 1-3 scene memory. Flush mount to wall or flat surface. Backup by 3-year warranty.
Features:
• Touch center for On/Off control
• Hold ☼ for RGB dimming (1-100%); Hold the white preset color selection for Dynamic White dimming
• 3 customizable scenes, 4 preset color selections, and Dynamic White through RGB color mixing
• Sensitive and accurate color wheel
• Radio frequency (RF) signal range up to 65 feet
• Control multiple receivers in a multiple zones
• Requires 12-24V DC input
• Requires Trulux RF receiver for operation (sold separately)
