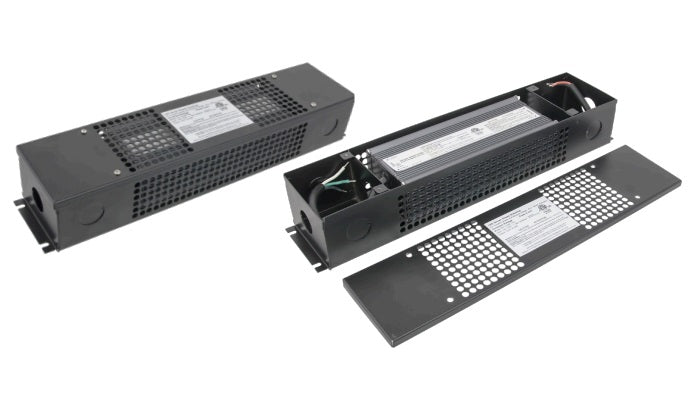

American Lighting ELV-60J Class 2 Rated 60 Watt Wet Location Constant Voltage Driver for LED Lighting
American Lighting ELV-60J Class 2 Rated 60 Watt Wet Location Constant Voltage Driver for LED Lighting
Specifications
Specifications
| Part Number# | ELV-60J |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, ETL Listed, FCC Compliant, ROHS |
| Dimensions: | 13.75" x 3.06" x 2.31" |
| Width: | 3.06" |
| Length: | 13.75" |
| Height: | 2.31" |
| Dimmable: | Yes |
| Weight Each: | 3.5 lbs |
| Manufacturer: | American Lighting |
Details
Details
ShineRetrofits Input:
This Class 2 Rated 60W ELV driver is highly reliable in dimming applications with a 60% minimum load attached and in nondimming applications with no minimum load requirements. Mounting is easy using built-in mounting tabs for attaching to surface.
Features:
• Class 2 12V or 24V constant voltage driver inside metal housing
• Available wattages include 60W and 80W
• Dimmable with standard leading edge dimmers (aka forward phase, MLV, Incandescent, TRIAC and trailing edge dimmers (aka 2-wire reverse phase, ELV)
• 1/2” knockouts on both primary and secondary ends
• cETLus Listed (Wet locations*)
• RoHs Compliant
• Input via 5” 18AWG SJOW x3C conductors
• Output via 5” 18AWG SJOW x2C conductors
