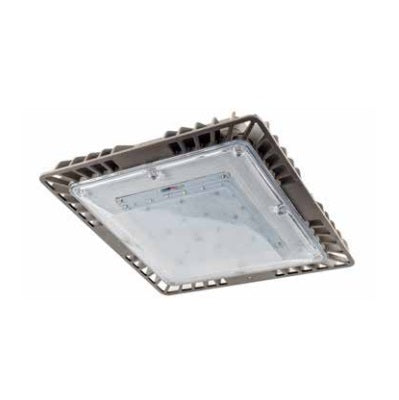

Alphalite SCL-L(40)/40K 40 Watt LED Surface Canopy Fixture Dimmable 4000K DLC Listed
Alphalite SCL-L(40)/40K 40 Watt LED Surface Canopy Fixture Dimmable 4000K DLC Listed
Specifications
Specifications
| Part Number# | SCL-L(40)/40K |
|---|---|
| Type of Area: | Coolers & Freezers, Large Retail & Open Areas, Parking Garage, Pole / Street / Parking Lot |
| Color Temp: | 4000K - Neutral White |
| Lumen Output: | 5,047 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed |
| CRI: | 70 |
| Dimensions: | 8.9" X 8.9" X 4.1" |
| Width: | 8.9" |
| Length: | 8.9" |
| Height: | 4.1" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Alphalite |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This DLC Listed LED Surface Canopy fixture delivers 5,047 lumens at lower wattage. Perfect for outdoor and semi-outdoor environments with it's advanced thermal management and protection. Features easy installation with universal mounting plate, die-cast aluminum housing, durable powder coating, and includes 5-year limited warranty.
Features:
• Durable die-cast housing
• Long life
• High efficacy LED system
• High lumen output
• Convenient J-Box Mounting
• Integrated heat management
Benefits:
• High performance LED
• Solid state components offer long life, reduced maintenance costs
• Energy-saving
• Life not affected by on/off switching and sensor-integration
• Improve safety, security and productivity with high quality of light
• Sustainable replacement solution to HID and Fluorescent
Application:
The SCL solution is ideal for walkways, drive-thrust, cold storage, garages, outdoor aisles, and walk in coolers.
Construction:
Rugged die-cast aluminum housing withstands outdoor environments. Outer surface treated with durable powder coating to provide resistance to corrosion, rust, weathering, and UV degradation. Performance-engineered, integral heat dissipation fins provides superior thermal management for long life and reliability.
Electrical:
Luminaire utilizes long life, high efficacy LEDs and a highly efficient, reliable LED driver. 120V-277V input voltage for increased versatility. Comes equipped with quick disconnect for compliance with US code.
Mounting:
Luminaire mounting designed for standard J-Box. Can be mounted directly to surface. Convenient and easy installation with universal mounting plate.
Optics:
Precision-monded lenses provide various photometric distributions depending on application. LED lenses optimize performance and increase delivered light to desired areas.
Finish:
Outer surface treated with durable powder coating to provide resistance to corrosion, rust, weathering, and UV degradation.
Certifications / Regulatory:
ETL listed. All components have safety approvals.
Warranty:
5-year limited warranty. See complete warranty terms for details.
