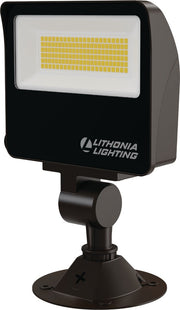

Lithonia Lighting's This versatile ESXF Series LED light fixture offers adjustable lumen output, allowing you to choose from three power levels ranging from 1,500 to an impressive 5,000 lumens. With a switchable CCT feature, you can easily switch between warm, cool, and daylight color temperatures in a single fixture. The IP66 rated, die-cast aluminum housing ensures durability and protection, while the included standard photocell can be easily turned on or off. With up to 171 lumens per watt efficiency, this flood light fixture provides brilliant and efficient illumination for various outdoor applications.

Features:

• Four sizes deliver 1,500 up to 5,000 lumens
• Three power levels of adjustable lumen output. Switchable CCT(30K/40K/50K) offers
  warm, cool and daylight in a single fixture
• Standard photocell can be turned on or off
• IP66 rated, Die-cast aluminum housing
• Two popular mounting options included up to 171 LPW



Intended Use:
The ESXF LED floodlight is designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources ranging from 500W Quartz or 150W metal halide. ESXF is well suited for general illumination of parking lots, signage, yards, walkways, landscaping, and other floodlighting applications. ESXF luminaires deliver a uniform, wide flood 7x7 light distribution.

Construction:
The ESXF LED floodlight features sealed die-cast aluminum body and is IP66 listed to withstand moisture and the elements for years to come.

Electrical:
ESXF features adjustable lumen output include, low, medium, and high. (ESXF P0 static only). Switchable CCT includes between 3000K(warm), 4000K(neutral) or 5000K(daylight) and a selectable dusk to dawn photocell that automatically turns the fixture on in the evening and off the next morning.
Standard 6kVsurge protection tested in accordance to ANSI/IEEE C62.41.2)Category C. ESXF LED luminaries use MVOLT (120-277V) as well as UVOLT (120-347V) on select models. Adjustable lumen output is achieved with 0-10V continuous dimming capable drivers, ensuring system power factor>90% and THD <20%.

Installation:
ESXF1 (P0) and ESXF2 ship with ½ NPS threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4" electrical boxes using the provided round mounting plate. Yoke mounts can be easily changed in the field to mount to any solid surfaces (ESXF P0, knuckle mount only). ESXF3 and ESXF4 include a yoke mounting for solid surface mounting and an integral slipfitter that mates with standard 2 3/8" tenons for pole-top mounting. All models ship standard with 18” SO cord.

Listings:
CSA certified to U.S. and Canadian standards. Luminaire is IP66 rated. Rated for -40°C
minimum ambient.

Warranty:
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/ warranty/terms-and-conditions

Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
