20 Foot 4 Inch Round Straight Steel Light Pole 11 Gauge Made in USA
20 Foot 4 Inch Round Straight Steel Light Pole 11 Gauge Made in USA
Specifications
Specifications
| Part Number# | RSS20B4-4 |
|---|---|
| Type of Area: | Pole / Street / Parking Lot |
| Ballast Start Type: | Instant Start |
| Certifications | 1 Year Warranty, Made In America Compliant |
| Dimmable: | No |
| Product Warranty: | 1 Year |
| Manufacturer: | Hapco |
Details
Details
**This product requires a 6-8 week lead time.
ShineRetrofits Input:
This 4" x 4" 11 gauge round straight steel light pole measures 20 feet tall and includes free shipping. Pole drilling or tenon mount included. It is made right here in the USA, comes with a one year powder coat warranty and is manufactured by one of the leading pole companies in the US. Additional freight will be charged for pre-shipment of anchor bolts and templates.

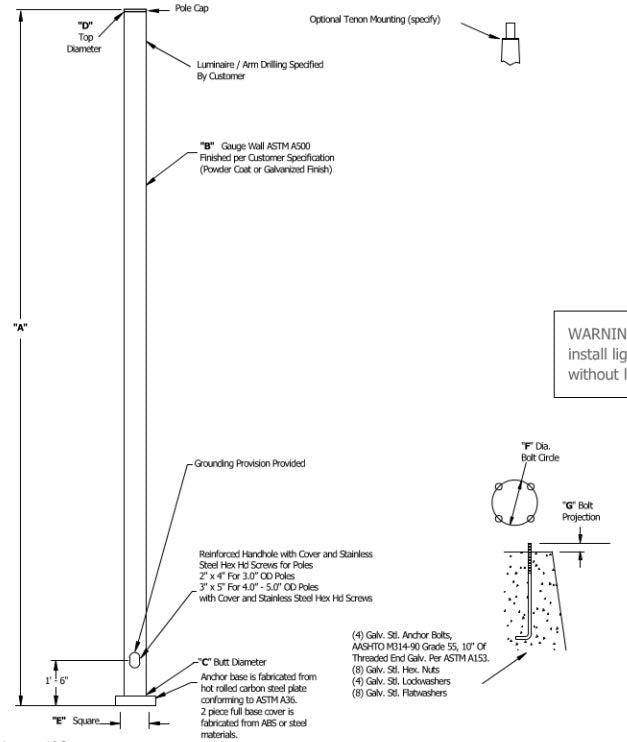

Specifications:
Mounting height: 20 ft.
Wall thickness: 11 gauge
Butt diameter: 4 in.
Top diameter: 4 in.
Base diameter: 10.5 in.
Bolt circle: 8 in.
Bolt projection: 2.75 in.
Bolt size: .75 x 17 x 3 in.
Net weight:
Luminary weight:
Additional Information:

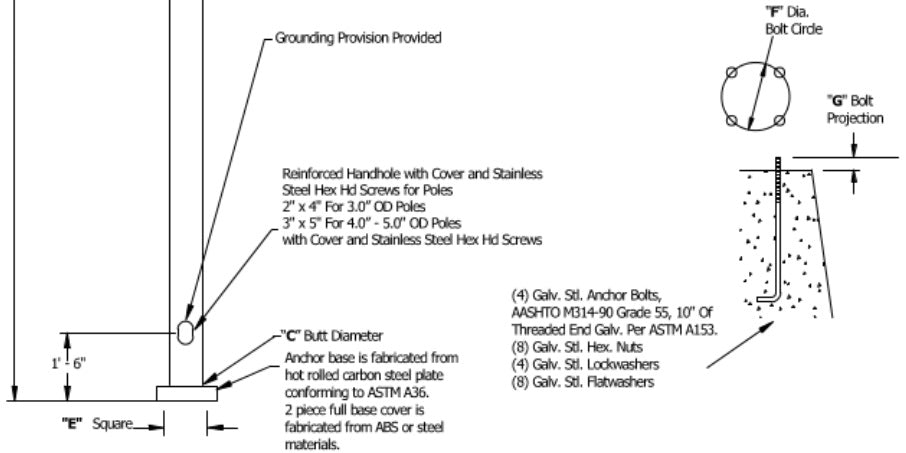

Reinforced hand hole with cover and stainless steel Hex Hd screws for poles. 4" - 5" OD poles will have a 3" x 5" hand hole. The anchor base is fabricated from hot rolled carbon steel plate, conforming to ASTM A36. The 2 piece full based cover is fabricated from ABS or steel materials.
The pole comes with (4) galvanized steel anchor bolts, AASHTO M314-90 Grade 55, 10" of threaded end galvanized per ASTM A153, (8) galvanized steel hex nuts, (4) galvanized steel lock washers, (8) galvanized steel flat washers.
