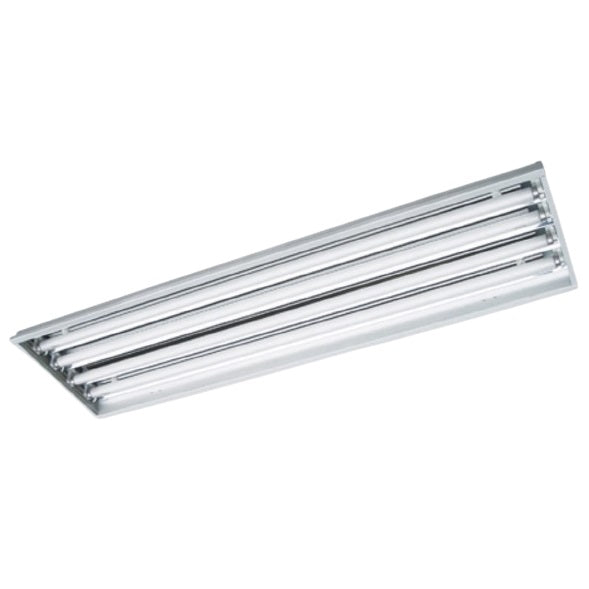

Maxlite BLHT Series 48-Inch Lamp-Ready Linear High Bay Light Fixture
Maxlite BLHT Series 48-Inch Lamp-Ready Linear High Bay Light Fixture
-
Specsheet:
Specifications
Specifications
| Part Number# | BLHT |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| Length: | 48" |
| Height: | 3" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.04 - 12.83 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Maxlite's Lamp Ready Linear High Bay offers a UL-listed fixture tailored for energy-saving LED T5 and T8 lamps, providing distributors, contractors, and buyers with a reliable lighting solution. The fixture housing, constructed from durable materials used in commercial- and industrial-grade fluorescent and LED PCB versions, combines robustness with flexibility and cost-effectiveness for installers in the field. Designed for a variety of indoor lighting applications such as high bay, low bay, assembly, warehouse, and general use, the Lamp Ready fixtures ensure competitive light output, especially when paired with MaxLite's T5 or T8 lamps. This makes them a versatile and efficient choice for diverse lighting needs.

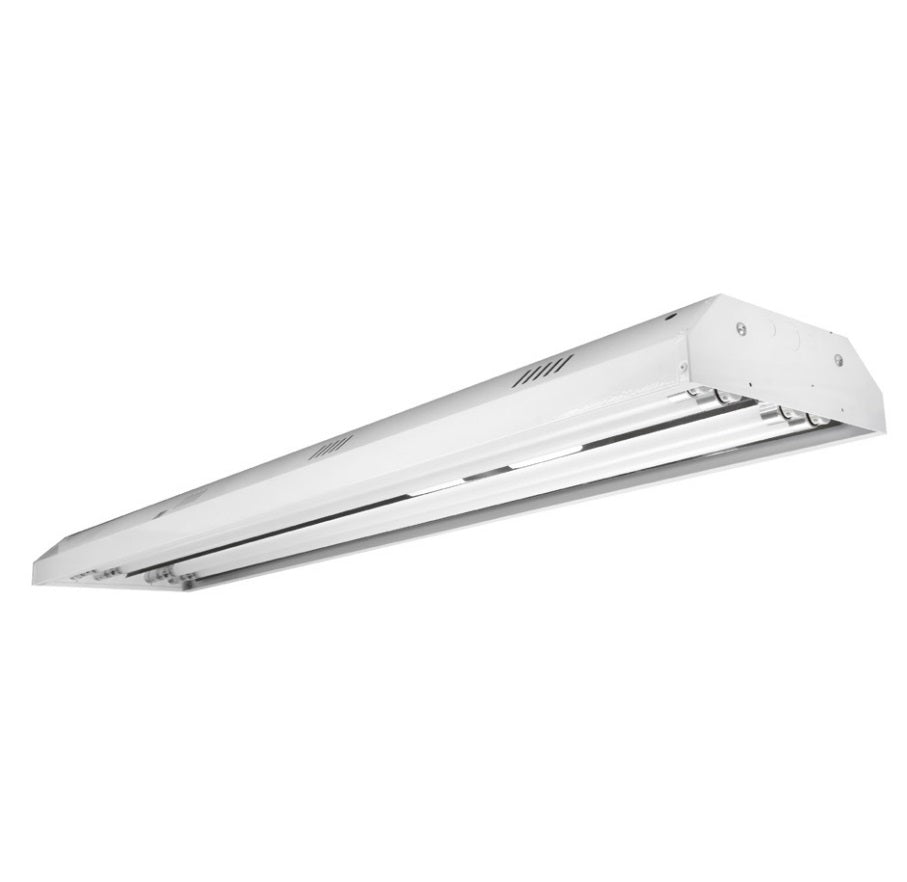

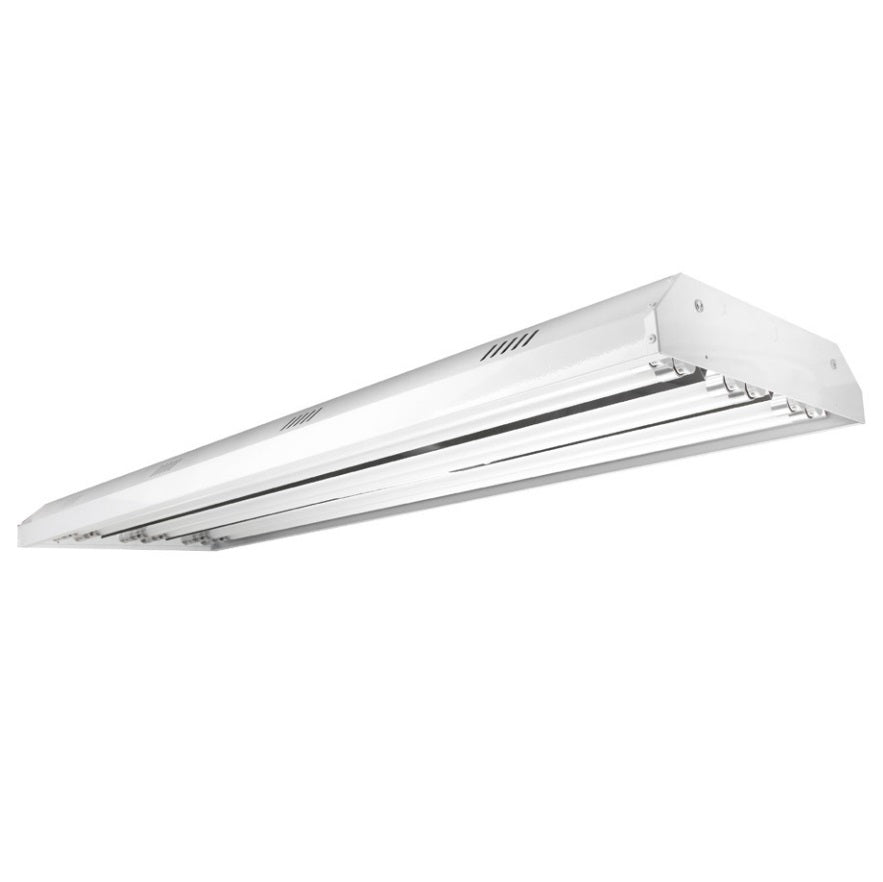

BLHT4XT5 & BLHT6XT5 Features:
• Lead wires are 7’ for tandem wiring
• Sockets are wired in series via non-shunted sockets
• Operating humidity 10% to 80% RH non-condensing
• Suitable for Damp Locations
BLHT4XT8 Features:
• Designed for LED Single/Double Ended lamps – Lamps supplied separately
• Maximum Photometric Efficiency with directional lamps
• V-Hooks std. with fixture, Cable kit mounting accessory available.
• Knockouts on each end for motion sensor mounting
Construction:
• 22 Gauge Galvanized Steel, white post painted baked on enamel.
• High Polish Reflector – 86% enhanced
• Damp-rated housings
• Supplied with ONLY non-shunted sockets and single-ended wiring configurations. For questions, contact MaxLite.
• Fits current MaxLite Linear HB door, wire guard, and lens
