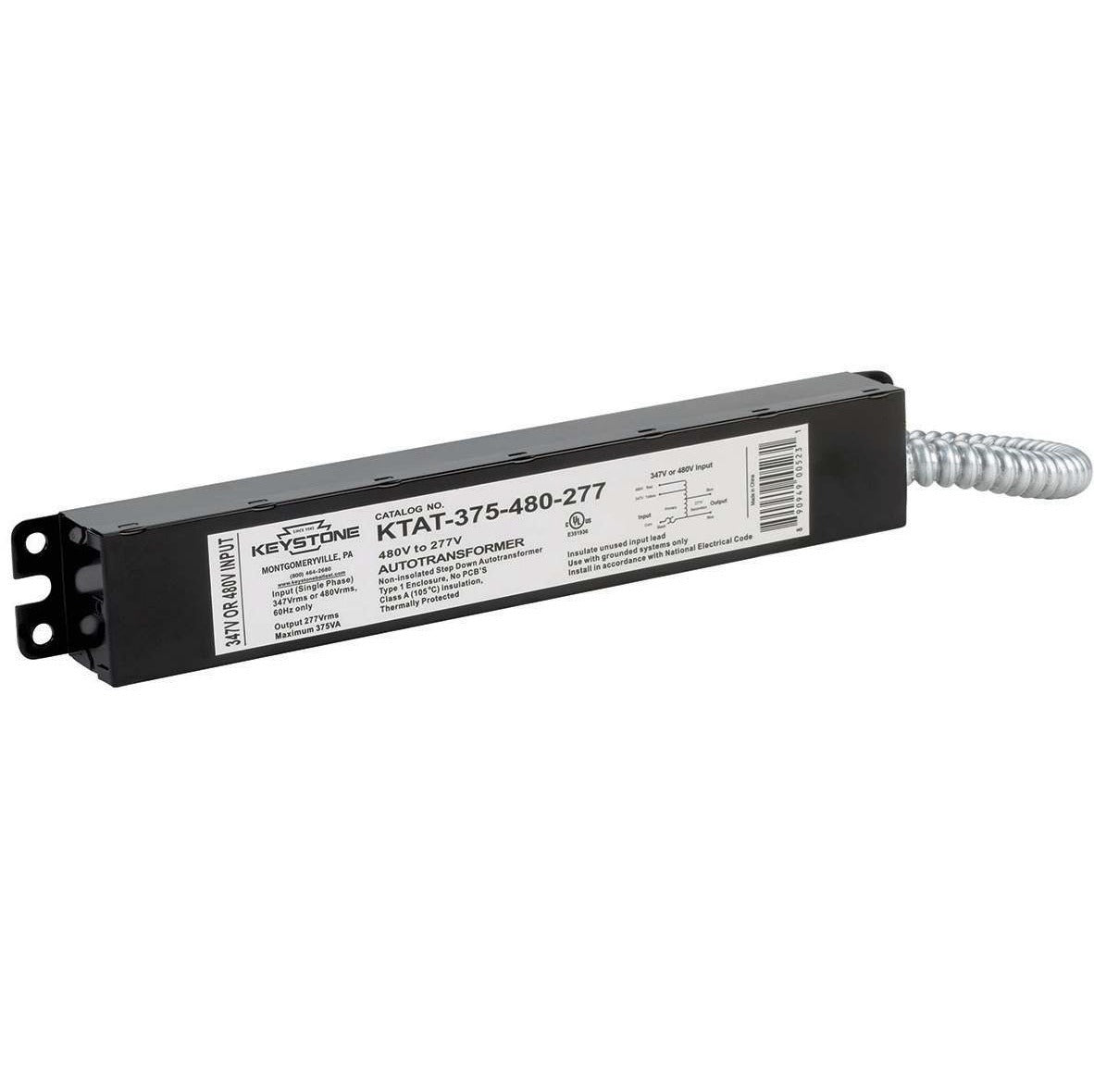

Keystone KTAT-375-480-277 /SF-IP Industrial Step-Down Auto-Transformer – 480V/347V to 277V/200V
Keystone KTAT-375-480-277 /SF-IP Industrial Step-Down Auto-Transformer – 480V/347V to 277V/200V
Specifications
Specifications
| Part Number# | KTAT-375-480-277 /SF-IP |
|---|---|
| Wattage: | 360 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, ROHS, UL Listed |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 480V |
| Weight Each: | 1.00 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Step Down Transformers |
Details
Details
ShineRetrofits Input:
The Keystone KTAT-375-480-277/SF-IP Industrial Step-Down Auto-Transformer converts 480V or 347V input to 277V or 200V output. It is designed for use with LED, T5, T8, CFL, and electronic HID ballasts. Built with thermal protection and an IP20 rating, it is safe for dry and damp locations. UL and cUL approved, this transformer delivers reliable performance and is backed by a 5-year warranty.
Features:
• Non-isolated autotransformer
• For use with T5, T8, LED, CFL, or electronic HID ballasts operating
at 277V input voltage
• Thermally protected
• UL and cUL 5085 approved
• IP20 for dry and damp locations
• INPUT VOLTAGE: 480Vac ±10% / 347Vac ±10%
• OUTPUT VOLTAGE: 277Vac @ 480Vac / 200Vac @ 347Vac
• MAXIMUM POWER: 375VA @ 480Vac / 270VA @ 347Vac
• 5-year limited warranty
