LUMOS-G2 Series Dual-Position LED Wall Pack

The Jarvis Lights LUMOS-G2 Series features a patented FlexPack™ design capable of both forward throw and full cutoff / dark sky orientation. Simply reposition the mounting plate to switch between applications without any additional hardware.

Product Highlights

• Patented FlexPack™ design — forward throw or full cutoff / dark sky orientation
• LED optics provide uniform light pattern with minimal glare
• 0-10V dimming capable, sensor and control ready
• Impact resistant and tamper resistant polycarbonate lens
• 10-year warranty
• UL Listed | DLC Premium Listed

Mounting Orientations

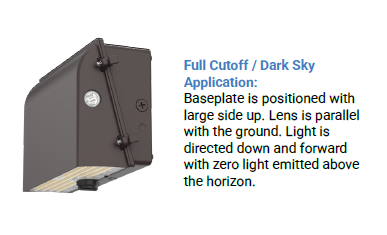

• Full Cutoff / Dark Sky: Baseplate positioned with large side up. Lens is parallel with the ground. Light is directed down and forward with zero light emitted above the horizon.

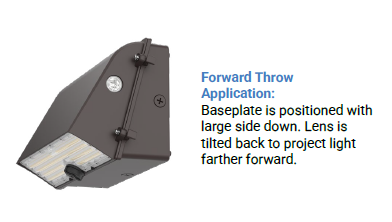

• Forward Throw: Baseplate positioned with large side down. Lens is tilted back to project light farther forward.

Ordering Guide

Example: LUMOS-G2-7ML15-30K/40K/50K-UV-BRZ-PC1-Z10R

• Product Family: LUMOS-G2
• Lumen Output / Wattage: 7ML15 — Selectable (15,150–101W / 12,000–80W / 9,000–60W / 7,500–50W)
• CCT: 30K/40K/50K — 3000K/4000K/5000K Adjustable CCT
• Optics:  — Forward Throw T3 (Default)
• Voltage: UV — 120-277V
• Housing Color: BRZ — Bronze
• Photocell: PC1 — Built-in Photocell
• Dimming/Control: Z10R — 0-10V dim-to-off + 12V Aux with Z10 receptacle
